QxDock::DockFloatingPreview类 参考

A floating overlay is a temporary floating widget that is just used to indicate the floating widget movement. 更多...

#include <qxdock/dockfloatingpreview.h>

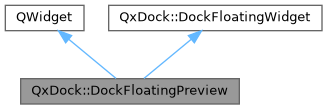

类 QxDock::DockFloatingPreview 继承关系图:

Public 成员函数
	DockFloatingPreview (DockPanel *content)
	DockFloatingPreview (DockWidget *content)
virtual	~DockFloatingPreview ()
virtual void	startFloating (const QPoint &dragStartMousePos, const QSize &size, Qx::DockDragState dragState, QWidget *mouseEventHandler) override
	Starts floating.
virtual void	finishDragging () override
	Tells the widget that to finish dragging if the mouse is released.
void	moveFloating () override
	Moves the widget to a new position relative to the position given when startFloating() was called.
void	cleanupAutoHideContainerWidget (Qx::DockWidgetArea containerDropArea)
void	draggingCanceled ()
void	onApplicationStateChanged (Qt::ApplicationState state)
	Cancel non opaque undocking if application becomes inactive
Public 成员函数 继承自 QxDock::DockFloatingWidget
virtual	~DockFloatingWidget ()=default

Protected 成员函数
	DockFloatingPreview (QWidget *content, QWidget *parent)
	The content is a DockPanel or a DockWidget
virtual bool	eventFilter (QObject *watched, QEvent *event) override
virtual void	paintEvent (QPaintEvent *e) override

详细描述

A floating overlay is a temporary floating widget that is just used to indicate the floating widget movement.

This widget is used as a placeholder for drag operations for non-opaque docking

在文件 dockfloatingpreview.h 第 23 行定义.

构造及析构函数说明

DockFloatingPreview() [1/3]

QxDock::DockFloatingPreview::DockFloatingPreview ( DockPanel *  content )

explicit

在文件 dockfloatingpreview.cpp 第 222 行定义.

DockFloatingPreview() [2/3]

QxDock::DockFloatingPreview::DockFloatingPreview ( DockWidget *  content )

explicit

在文件 dockfloatingpreview.cpp 第 231 行定义.

~DockFloatingPreview()

QxDock::DockFloatingPreview::~DockFloatingPreview ( )

virtual

在文件 dockfloatingpreview.cpp 第 285 行定义.

DockFloatingPreview() [3/3]

QxDock::DockFloatingPreview::DockFloatingPreview ( QWidget *  content, QWidget *  parent  )

protected

The content is a DockPanel or a DockWidget

在文件 dockfloatingpreview.cpp 第 245 行定义.

成员函数说明

cleanupAutoHideContainerWidget()

void QxDock::DockFloatingPreview::cleanupAutoHideContainerWidget

(

Qx::DockWidgetArea

containerDropArea

)

在文件 dockfloatingpreview.cpp 第 350 行定义.

draggingCanceled()

void QxDock::DockFloatingPreview::draggingCanceled

(

)

eventFilter()

bool QxDock::DockFloatingPreview::eventFilter ( QObject *  watched, QEvent *  event  )

overrideprotectedvirtual

在文件 dockfloatingpreview.cpp 第 385 行定义.

finishDragging()

void QxDock::DockFloatingPreview::finishDragging ( )

overridevirtual

Tells the widget that to finish dragging if the mouse is released.

This function should be called from a mouse release event handler to finish the dragging

实现了 QxDock::DockFloatingWidget.

在文件 dockfloatingpreview.cpp 第 302 行定义.

moveFloating()

void QxDock::DockFloatingPreview::moveFloating ( )

overridevirtual

Moves the widget to a new position relative to the position given when startFloating() was called.

This function should be called from a mouse move event handler to move the floating widget on mouse move events.

实现了 QxDock::DockFloatingWidget.

在文件 dockfloatingpreview.cpp 第 341 行定义.

onApplicationStateChanged()

void QxDock::DockFloatingPreview::onApplicationStateChanged

(

Qt::ApplicationState

state

)

Cancel non opaque undocking if application becomes inactive

在文件 dockfloatingpreview.cpp 第 375 行定义.

paintEvent()

void QxDock::DockFloatingPreview::paintEvent ( QPaintEvent *  e )

overrideprotectedvirtual

在文件 dockfloatingpreview.cpp 第 400 行定义.

startFloating()

void QxDock::DockFloatingPreview::startFloating ( const QPoint &  dragStartMousePos, const QSize &  size, Qx::DockDragState  dragState, QWidget *  mouseEventHandler  )

overridevirtual

Starts floating.

This function should get called typically from a mouse press event handler

实现了 QxDock::DockFloatingWidget.

在文件 dockfloatingpreview.cpp 第 290 行定义.

---

该类的文档由以下文件生成:

• src/libs/qxdock/dockfloatingpreview.h
• src/libs/qxdock/dockfloatingpreview.cpp
