This implements a floating widget that is a dock container that accepts docking of dock widgets like the main window and that can be docked into another dock container. 更多...

#include <qxdock/dockfloatingcontainer.h>

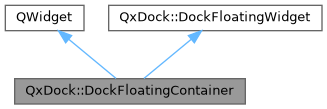

类 QxDock::DockFloatingContainer 继承关系图:

[图例]

Public 类型
using	Super = QWidget

Public 成员函数
	DockFloatingContainer (DockWindow *window)

	DockFloatingContainer (DockPanel *panel)

	DockFloatingContainer (DockWidget *widget)

virtual	~DockFloatingContainer ()

bool	isClosable () const
	This function returns true, if it can be closed.

DockContainer *	dockContainer () const

DockWidget *	topLevelDockWidget () const
	This function returns the first dock widget in the first dock panel.

QList< DockWidget * >	dockWidgets () const
	This function returns a list of all dock widget in this floating widget.

bool	hasTopLevelDockWidget () const
	This function returns true, if this floating widget has only one single visible dock widget in a single visible dock panel.

void	finishDropOperation ()

void	onDockAreasAddedOrRemoved ()

void	onDockAreaCurrentChanged (int index)

Public 成员函数继承自 QxDock::DockFloatingWidget
virtual	~DockFloatingWidget ()=default

Protected 成员函数
virtual void	startFloating (const QPoint &dragStartMousePos, const QSize &size, Qx::DockDragState dragState, QWidget *mouseEventHandler) override
	Starts floating.

virtual void	finishDragging () override
	Tells the widget that to finish dragging if the mouse is released.

void	moveFloating () override
	Moves the widget to a new position relative to the position given when startFloating() was called.

void	deleteContent ()
	This function deletes all dock widgets in it.

void	updateWindowTitle ()

bool	restoreState (DockStateReader &stream, bool testing)

virtual void	closeEvent (QCloseEvent *event) override

virtual void	hideEvent (QHideEvent *event) override

virtual void	showEvent (QShowEvent *event) override

virtual void	changeEvent (QEvent *event) override

友元
class	DockWindow

class	DockWidget

class	DockPanel

class	DockWindowPrivate

class	DockFloatingTitleBar

详细描述

This implements a floating widget that is a dock container that accepts docking of dock widgets like the main window and that can be docked into another dock container.

Every floating window of the docking system is a DockFloatingContainer.

在文件 dockfloatingcontainer.h 第 34 行定义.

成员类型定义说明

◆ Super

using QxDock::DockFloatingContainer::Super = QWidget

在文件 dockfloatingcontainer.h 第 38 行定义.

构造及析构函数说明

◆ DockFloatingContainer() [1/3]

QxDock::DockFloatingContainer::DockFloatingContainer ( DockWindow * window )

explicit

在文件 dockfloatingcontainer.cpp 第 270 行定义.

◆ DockFloatingContainer() [2/3]

QxDock::DockFloatingContainer::DockFloatingContainer ( DockPanel * panel )

explicit

在文件 dockfloatingcontainer.cpp 第 339 行定义.

◆ DockFloatingContainer() [3/3]

QxDock::DockFloatingContainer::DockFloatingContainer ( DockWidget * widget )

explicit

在文件 dockfloatingcontainer.cpp 第 351 行定义.

◆ ~DockFloatingContainer()

QxDock::DockFloatingContainer::~DockFloatingContainer ( )

virtual

在文件 dockfloatingcontainer.cpp 第 364 行定义.

成员函数说明

◆ changeEvent()

void QxDock::DockFloatingContainer::changeEvent ( QEvent * event )

overrideprotectedvirtual

在文件 dockfloatingcontainer.cpp 第 744 行定义.

◆ closeEvent()

void QxDock::DockFloatingContainer::closeEvent ( QCloseEvent * event )

overrideprotectedvirtual

在文件 dockfloatingcontainer.cpp 第 674 行定义.

◆ deleteContent()

void QxDock::DockFloatingContainer::deleteContent ( )

protected

This function deletes all dock widgets in it.

This functions should be called only from dock window in its destructor before deleting the floating widget

在文件 dockfloatingcontainer.cpp 第 619 行定义.

◆ dockContainer()

DockContainer * QxDock::DockFloatingContainer::dockContainer ( ) const

在文件 dockfloatingcontainer.cpp 第 383 行定义.

◆ dockWidgets()

QList< DockWidget * > QxDock::DockFloatingContainer::dockWidgets ( ) const

This function returns a list of all dock widget in this floating widget.

This is a simple convenience function that simply calls the dockWidgets() function of the internal container widget.

在文件 dockfloatingcontainer.cpp 第 405 行定义.

◆ finishDragging()

void QxDock::DockFloatingContainer::finishDragging ( )

overrideprotectedvirtual

Tells the widget that to finish dragging if the mouse is released.

This function should be called from a mouse release event handler to finish the dragging

实现了 QxDock::DockFloatingWidget.

在文件 dockfloatingcontainer.cpp 第 572 行定义.

◆ finishDropOperation()

void QxDock::DockFloatingContainer::finishDropOperation ( )

在文件 dockfloatingcontainer.cpp 第 423 行定义.

◆ hasTopLevelDockWidget()

bool QxDock::DockFloatingContainer::hasTopLevelDockWidget ( ) const

This function returns true, if this floating widget has only one single visible dock widget in a single visible dock panel.

The single dock widget is a real top level floating widget because no other widgets are docked.

在文件 dockfloatingcontainer.cpp 第 417 行定义.

◆ hideEvent()

void QxDock::DockFloatingContainer::hideEvent ( QHideEvent * event )

overrideprotectedvirtual

在文件 dockfloatingcontainer.cpp 第 712 行定义.

◆ isClosable()

bool QxDock::DockFloatingContainer::isClosable ( ) const

This function returns true, if it can be closed.

It can be closed, if all dock widgets in all dock areas can be closed

在文件 dockfloatingcontainer.cpp 第 377 行定义.

◆ moveFloating()

void QxDock::DockFloatingContainer::moveFloating ( )

overrideprotectedvirtual

Moves the widget to a new position relative to the position given when startFloating() was called.

This function should be called from a mouse move event handler to move the floating widget on mouse move events.

实现了 QxDock::DockFloatingWidget.

在文件 dockfloatingcontainer.cpp 第 586 行定义.

◆ onDockAreaCurrentChanged()

void QxDock::DockFloatingContainer::onDockAreaCurrentChanged ( int index )

在文件 dockfloatingcontainer.cpp 第 533 行定义.

◆ onDockAreasAddedOrRemoved()

void QxDock::DockFloatingContainer::onDockAreasAddedOrRemoved ( )

在文件 dockfloatingcontainer.cpp 第 514 行定义.

◆ restoreState()

bool QxDock::DockFloatingContainer::restoreState	(	DockStateReader &	stream,
		bool	testing
	)

protected

在文件 dockfloatingcontainer.cpp 第 659 行定义.

◆ showEvent()

void QxDock::DockFloatingContainer::showEvent ( QShowEvent * event )

overrideprotectedvirtual

在文件 dockfloatingcontainer.cpp 第 734 行定义.

◆ startFloating()

void QxDock::DockFloatingContainer::startFloating	(	const QPoint &	dragStartMousePos,
		const QSize &	size,
		Qx::DockDragState	dragState,
		QWidget *	mouseEventHandler
	)

overrideprotectedvirtual

Starts floating.

This function should get called typically from a mouse press event handler

实现了 QxDock::DockFloatingWidget.

在文件 dockfloatingcontainer.cpp 第 541 行定义.

◆ topLevelDockWidget()

DockWidget * QxDock::DockFloatingContainer::topLevelDockWidget ( ) const

This function returns the first dock widget in the first dock panel.

If the function hasTopLevelDockWidget() returns true, then this function returns this single dock widget.

在文件 dockfloatingcontainer.cpp 第 394 行定义.

◆ updateWindowTitle()

void QxDock::DockFloatingContainer::updateWindowTitle ( )

protected

在文件 dockfloatingcontainer.cpp 第 639 行定义.

友元及相关函数文档

◆ DockFloatingTitleBar

friend class DockFloatingTitleBar

friend

在文件 dockfloatingcontainer.h 第 108 行定义.

◆ DockPanel

friend class DockPanel

friend

在文件 dockfloatingcontainer.h 第 106 行定义.

◆ DockWidget

friend class DockWidget

friend

在文件 dockfloatingcontainer.h 第 105 行定义.

◆ DockWindow

friend class DockWindow

friend

在文件 dockfloatingcontainer.h 第 104 行定义.

◆ DockWindowPrivate

friend class DockWindowPrivate

friend

在文件 dockfloatingcontainer.h 第 107 行定义.

该类的文档由以下文件生成:

src/libs/qxdock/dockfloatingcontainer.h
src/libs/qxdock/dockfloatingcontainer.cpp
